Product

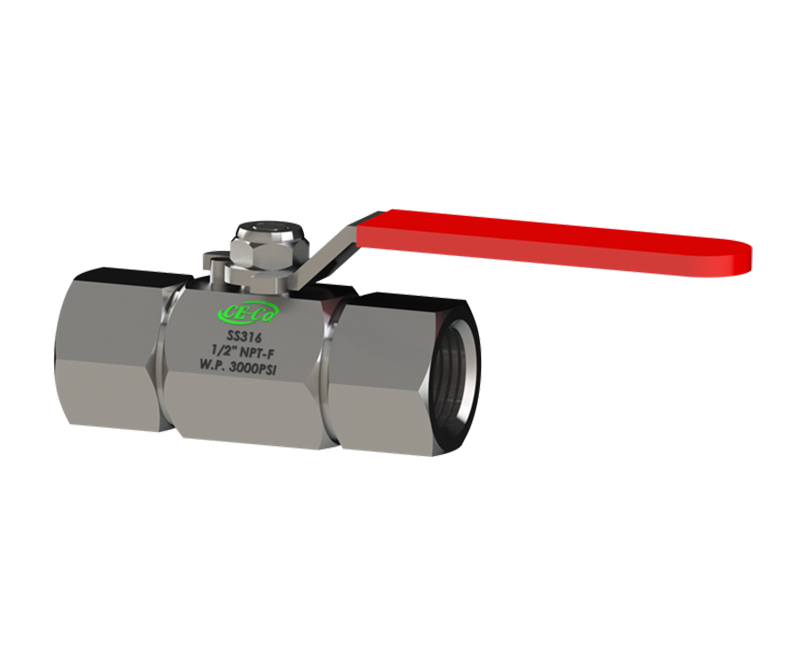

HEX BODY BALL VALVE
2 Piece design with floating ball & internally loaded stem with minimum joints.
Easy installation.- Requires less space.
- Low torque.
- Low cost.
- Less manufacturing time.
- Customization of pressure, temperature and metal available.
| TECHNICAL DATA | |
|---|---|
| SIZE | ¼” TO 2” NPT/BSP ¼” TO 1” TUBE END CONNECTION |
| PRESSURE RATING | 1000 PSI TO 10000 PSI (WITH DIFFERENT BODY SIZE |
| STANDARD MATERIALS | CS, SS 304, SS 316, BRASS & ALL ALLOY GRADES |
| BALL SEAT | PTFE, PEAK, DEVLON, DERLIN |
| TEMPERATURE | -29°C TO 250°C (WITH DIFFERENT BALL SEATS) |
